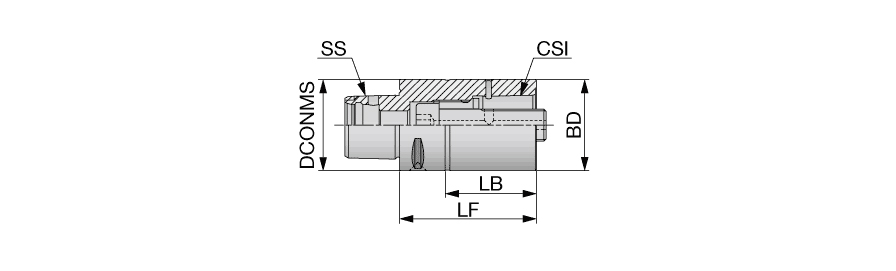

| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | ISO 26623 (CAMFIX, CAPTO) |
| Protruding Length (LPR) | 60 mm | Measurement Type | Metric |
| Shank Size (SS) | C4 | Body Material | Steel |
| Shank Length (LS) | 24 mm | Functional Length (LF) | 60 mm |
| Body Diameter (BD) | 40 mm | Torque (TQ) | 65 Nm |
| Application | | Face contact interface | | Unit | M |
Product Features
| Family Description | TungCap Extension adapters | FamilyName | C-EX |
| Remarks | Torque: Recommended torque (Nm) for clamping Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.6010
Name
Extensions
FamilyName
C-EX
BrandName
Tungaloy
