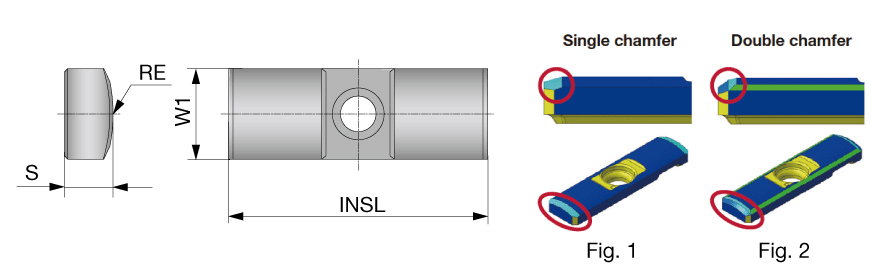

| Overall Length (OAL) | 40 mm | Corner Radius (RE) | 25 mm |
| Measurement Type | Metric | Grade | FH3125 |
| Width (W) | 14 mm | Coating | AlTiCrN |
| Thickness (H) | 7.5 mm | Cutting Edge Material | Carbide |
| Application | | Accessories | BTA system | General Drilling | Gundrill | | Unit | M |
| Body Material | Steel |
Product Features

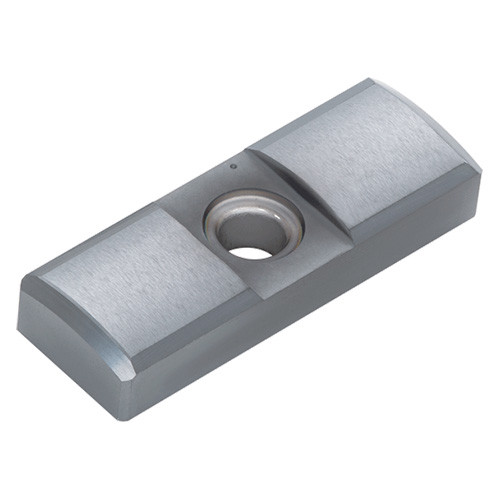

| Family Description | Guide pad (Single chamfer, Double chamfer) | COO | JAPAN |
| Remarks | For applicable drill, click on "More Info". |
Shipping Info
Weight per item
0.2900
Related Documentation

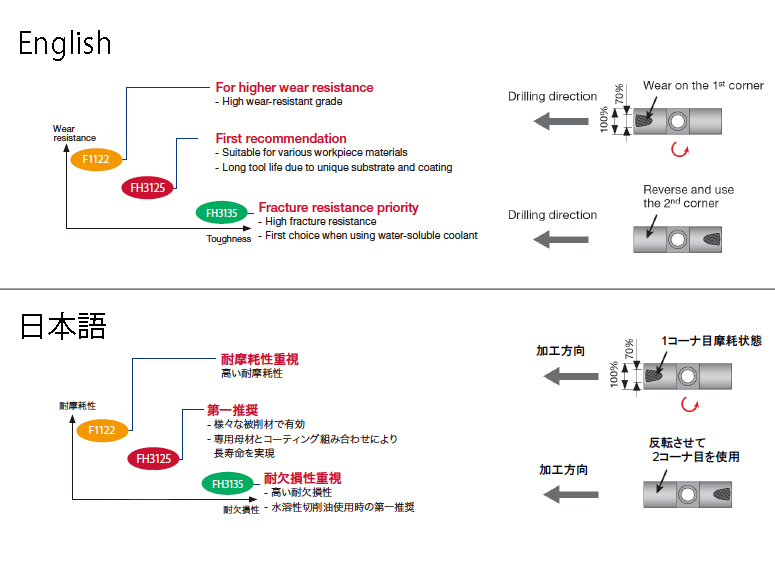

Guide pads are subject to wear, like inserts @- The guide pad can be used on two end faces. @- When the first face wears up to 70% of its width, reverse the guide pad to use the second face. @- Replace with a new guide pad when the second face wears out.
