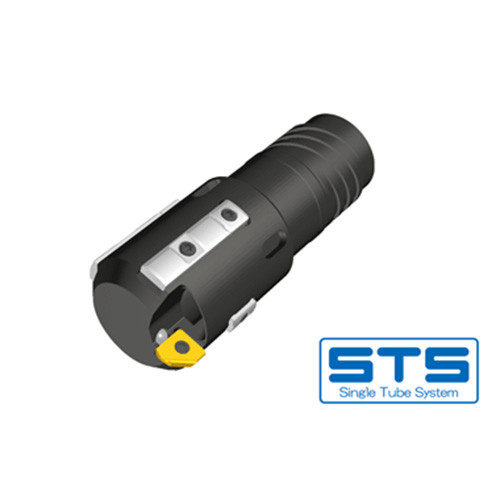

KUSTR04E-XX.XX
Single Tube Counterboring Drills with Outer 4 Start Thread connection and Cartridges, dia=25 - 39.99mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

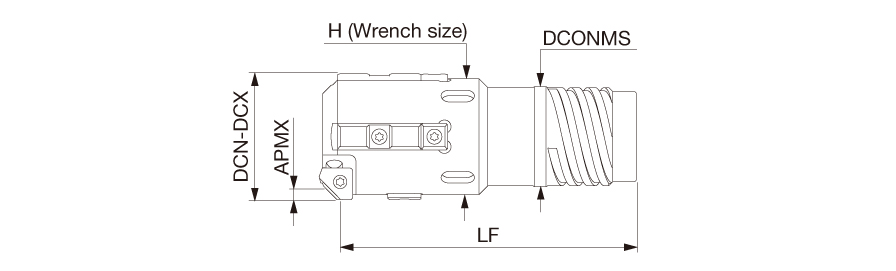

| Connection Diameter Machine Side (DCONMS) | 23.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 31 mm | Application | | BTA system | |
| Cutting Diameter Minimum (DCN) | 28.71 mm | Depth of Cut Maximum (APMX) | 2.8 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Single Tube Counterboring Drills with Outer 4 Start Thread connection and Cartridges, dia=25 - 39.99mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
