206.064.025.045

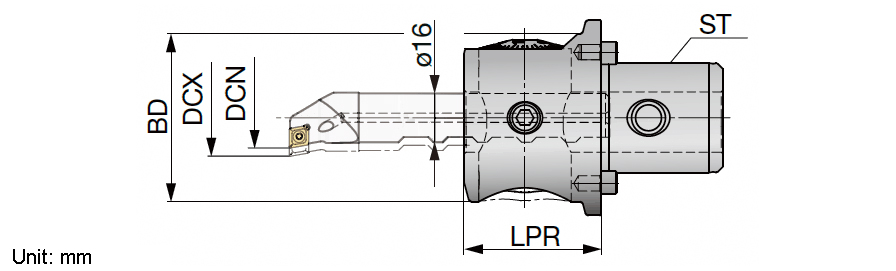

| Application | | SwissBore tools | | Connection Diameter Machine Side (DCONMS) | 36 mm |
| Cutting Diameter Minimum (DCN) | 9.75 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 88.1 mm | Body Material | Steel |
| Functional Length (LF) | 45 mm | Unit | M |
| Body Diameter (BD) | 55 mm |
Product Features

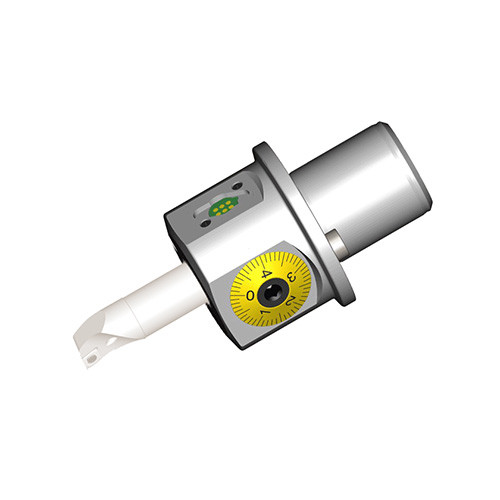

| Family Description | Digital Fine boring heads for dia 9.75 - 88.1 mm | COO | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Boring bars should be ordered individualy. Radius adjustment range: 2.7 mm Applicable for 3 MPa pressure coolant. |
Shipping Info
Weight per item
0.0000
Related Documentation

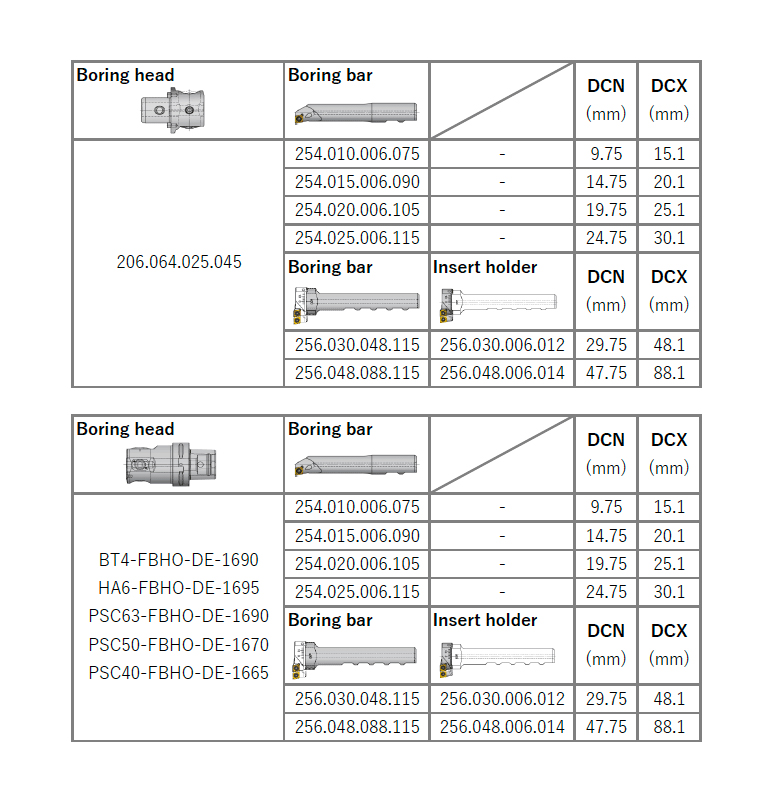

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
