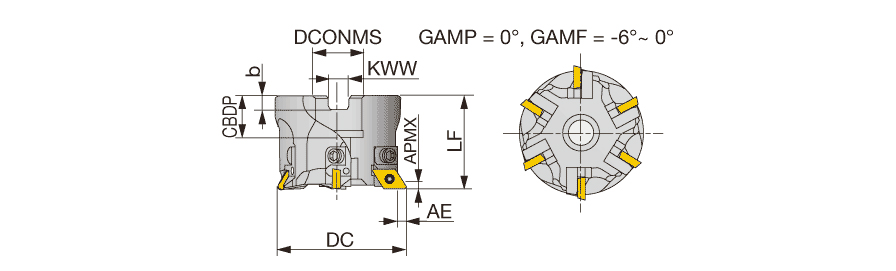

| Application | | Profile Milling | | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 80 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 7 | Tool Type | Plungers cutters |
| Depth of Cut Maximum (APMX) | 0.5 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Unit | M |
| Overall Length (OAL) | 63 mm |
Product Features

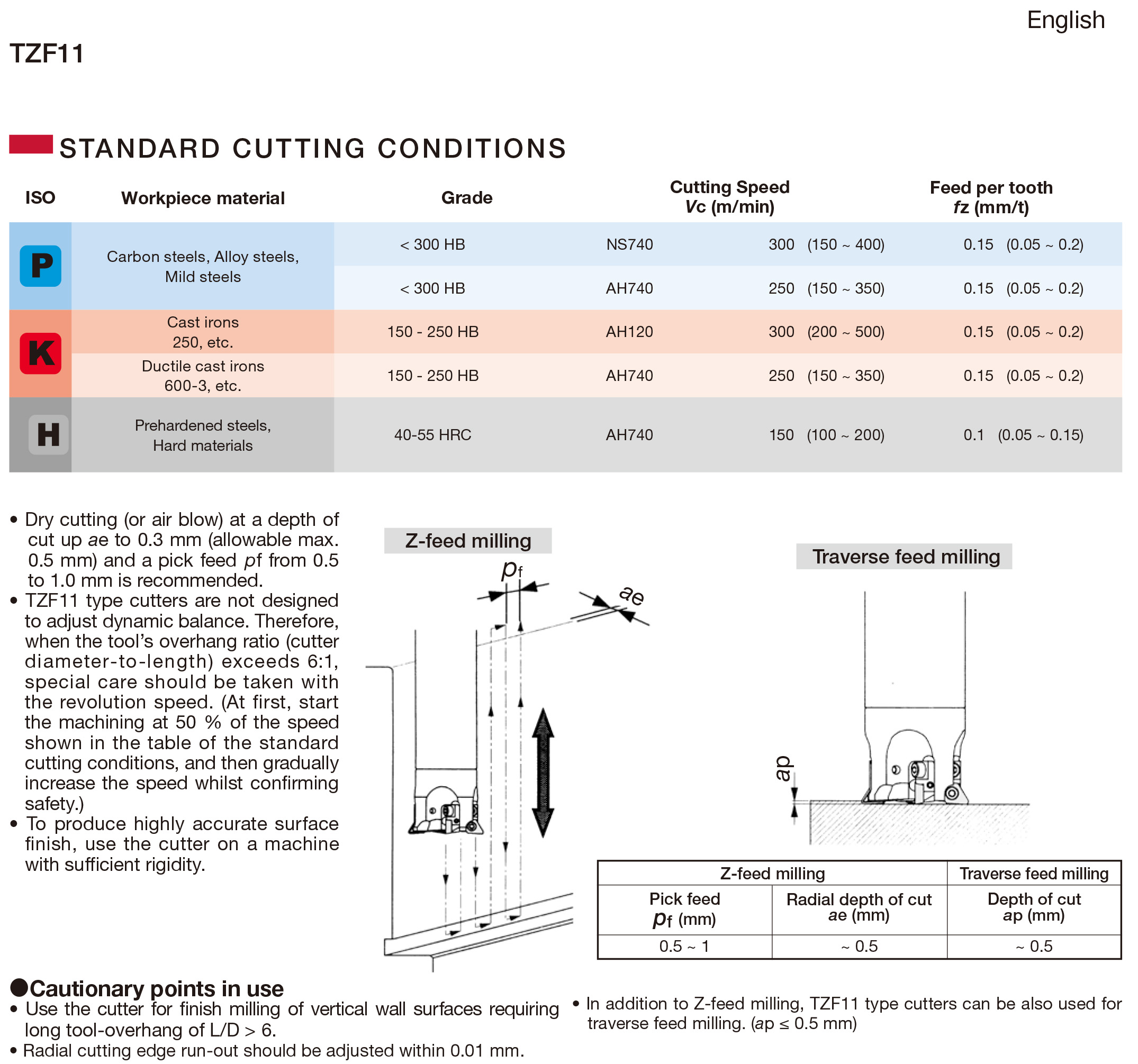

| Family Description | Z-feed plunging cutter for finishing operation | FamilyName | TZF11 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.9260
Name
Plunge Mills
FamilyName
TZF11
BrandName
Tungaloy
