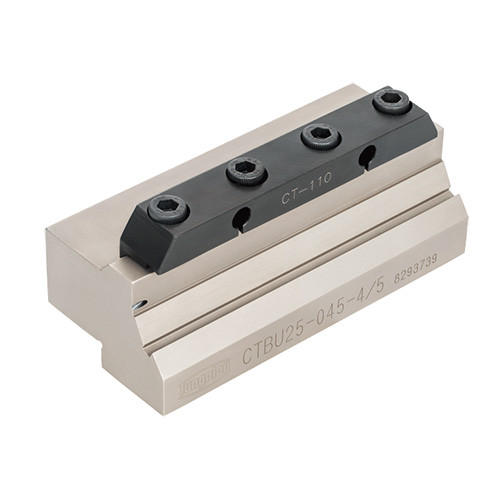

CTBU25-045-4/5-CHP
Tool block for EFP blades, with channels for high pressure coolant.

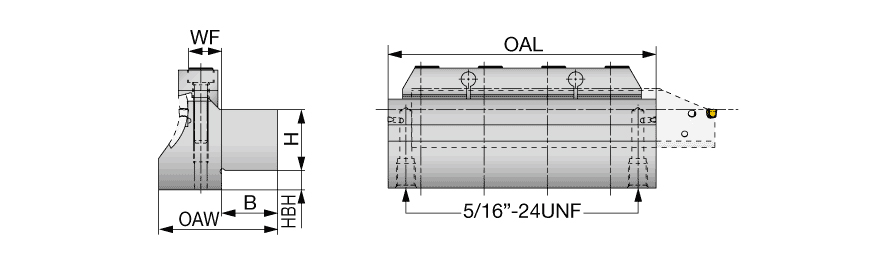

| Shank Height (H) | 25 mm | Application | | Face grooving | |
| Shank Width (B) | 23 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 4 mm | Tool Type | TOOL BLOCK - FOR EFP BLADES |
| Cutting Width Maximum (CWX) | 5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Head Length (LH) | 26 mm | Functional Width (WF) | 13.6 mm |
| Overall Height (OAH) | 25 mm | Unit | M |
| Minimum Bore Diameter (DMIN) | 45 mm |
Product Features
| Family Description | Tool block for EFP blades, with channels for high pressure coolant. | FamilyName | CTBU-CHP for EFPR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.2930
Name
Parting Off Indexable Holders
FamilyName
CTBU-CHP for EFPR/L
BrandName
Tungaloy
