HS40-MTHOR-4
Exchangeable internal threading heads, for on edge inserts, applicable on S-570 shanks

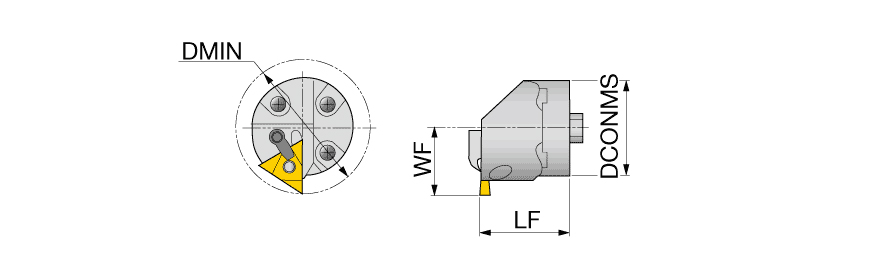

| Minimum Bore Diameter (DMIN) | 66.7 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 32 mm | Inscribed Circle Diameter (IC) | 12.7 mm |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Internal Threading | |
Product Features
| Family Description | Exchangeable internal threading heads, for on edge inserts, applicable on S-570 shanks | FamilyName | HS-MTHOR |
| COO | USA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2800
Name
On-Edge Threading Indexable Holders
FamilyName
HS-MTHOR
BrandName
Tungaloy
