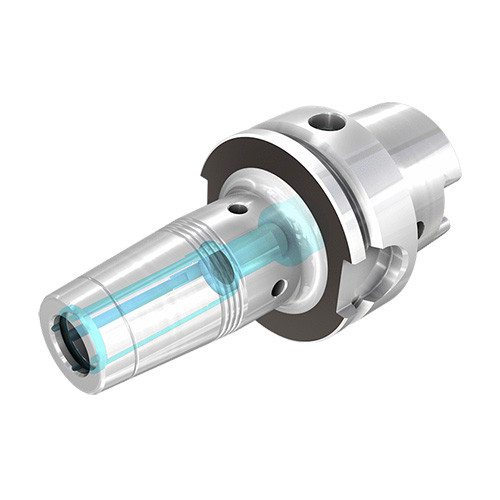

HSKA63SRKIN8X120CX
Thermal shrinking holder with HSK DIN69893 form A tapered shank, with coolant jet channels, for carbide, HSS and steel shanks
| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Length (OAL) | 120 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Application | | Face contact interface | |
| Shank Size (SS) | 63 | Thread Designation Inside (THID) | M6 |
| Body Length (LB) | 94 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 38.1 mm | Tool Type | HSK |
| Body Diameter (BD) | 21 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 27 mm | Unit | M |
Product Features
| Family Description | Thermal shrinking holder with HSK DIN69893 form A tapered shank, with coolant jet channels, for carbide, HSS and steel shanks | FamilyName | HSK A-SRKIN-CX |
| Remarks | Always mount the cooling tube (not included) for internal coolant supply. For the cooling tube, click on "Accessories". Please use an induction heating unit for SRKIN holder. For the unit and shank dimensions, click on "More Info". Unbalance under 1 g x mm is not guaranteed. Always use a dedicated preset screw (PRESET CX M*X...) included in the package. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
HSK A-SRKIN-CX
BrandName
Tungaloy
