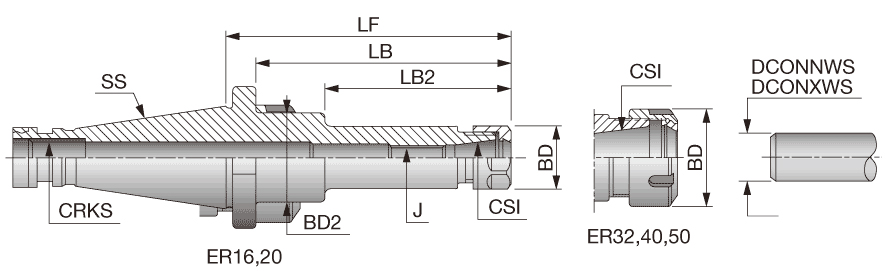

| Shank Size (SS) | DIN2080 SK40 | Tool Type | DIN 2080 |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 38.4 mm | Measurement Type | Metric |
| Shank Length (LS) | 93.4 mm | Body Material | Steel |
| Functional Length (LF) | 50 mm | Unit | M |
| Application | | Tapered shape interface | |
Product Features

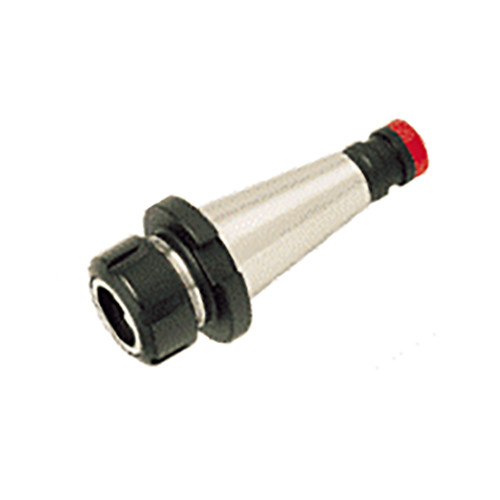

| Family Description | ER collet chucks with DIN2080 shank | FamilyName | DIN2080-ER (collet chuck) |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.9440
Name
Collet Chucks
FamilyName
DIN2080-ER (collet chuck)
BrandName
Tungaloy
