CAT50ER32SHORTB

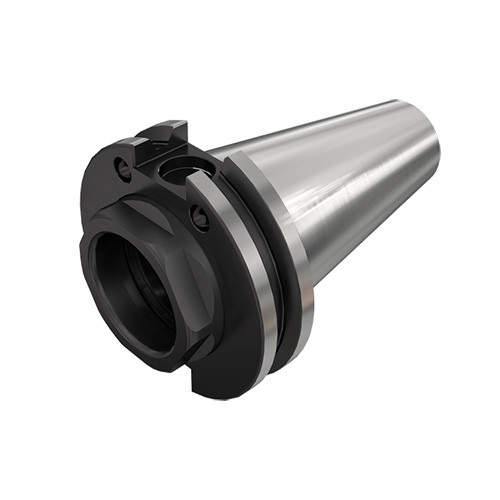

TungShort, DIN 6499 ER short collet chuck holder with Caterpillar form AD tapered shank.

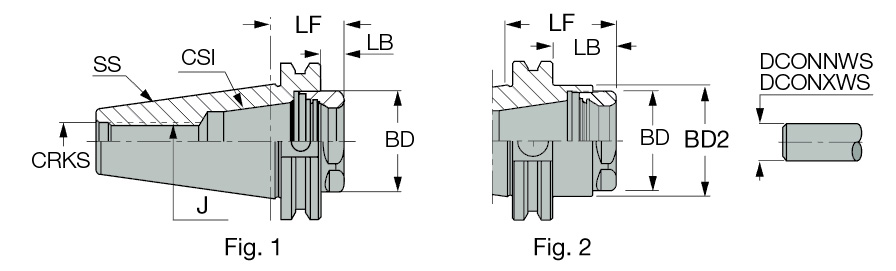

| Shank Size (SS) | CAT50 | Tool Type | Caterpillar |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Diameter (BD) | 1.575″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Body Length (LB) | 0.374″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
| Functional Length (LF) | 1.124″ | Unit | I |
| Application | | Tapered shape interface | |
Product Features
| Family Description | TungShort, DIN 6499 ER short collet chuck holder with Caterpillar form AD tapered shank. | FamilyName | CAT-ER collet (TungShort) |
| COO | TURKEY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
CAT-ER collet (TungShort)
BrandName
Tungaloy
