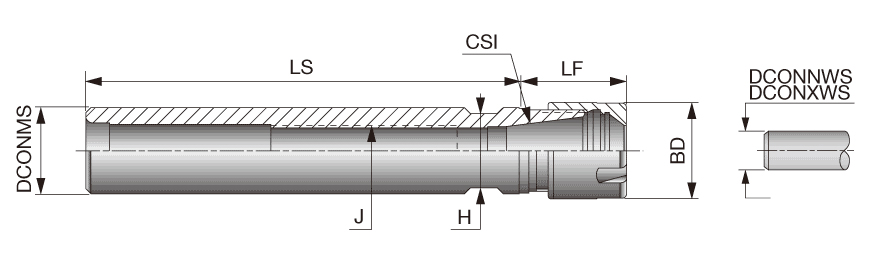

| Shank Size (SS) | 16. | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 16 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Shank Length (LS) | 50 mm | Body Material | Steel |
| Functional Length (LF) | 18.5 mm | Unit | M |
| Application | | Straight shape | |
Product Features

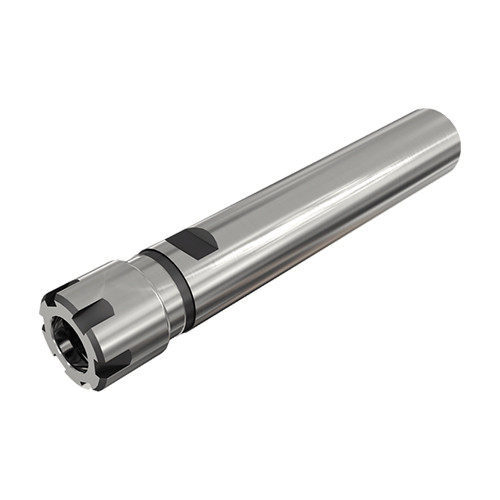

| Family Description | ER Mini-collet chucks with Straight shank | FamilyName | ST-ER-M (Mini collet) |
| Remarks | F indicates a flat on the shank. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0950
Name
Collet Chucks
FamilyName
ST-ER-M (Mini collet)
BrandName
Tungaloy
