HSKA63ER32X120BIN
TungBalance adjustable dynamic balance collet chuck holder with HSK-A shank

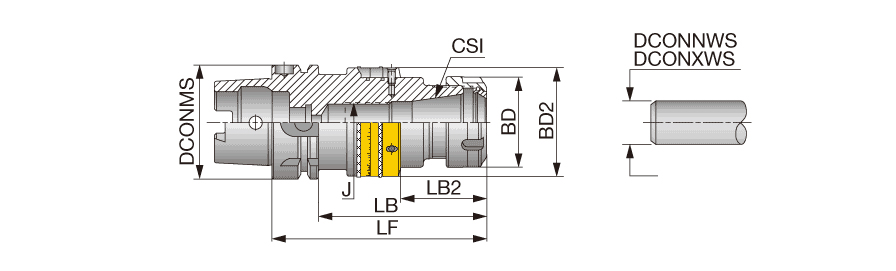

| Shank Size (SS) | HSK A 63 | Application | | Face contact interface | |
| Connection Size (CSI) | ER32 | Tool Type | HSK |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 94 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length_2 (LB_2) | 48 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Shank Length (LS) | 32 mm | Unit | M |
| Functional Length (LF) | 120 mm |
Product Features
| Family Description | TungBalance adjustable dynamic balance collet chuck holder with HSK-A shank | FamilyName | HSK A-ER BIN (TungBalance) |
| Remarks | Balanced to G2.5 20,000 min 1 | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
HSK A-ER BIN (TungBalance)
BrandName
Tungaloy
