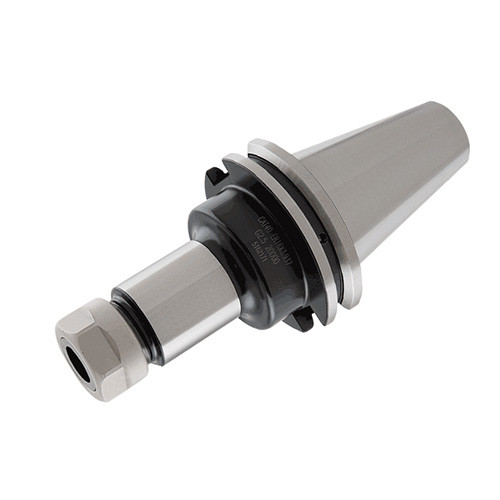

CAT50FCER40X4.000
ER collet chuck holder with Caterpillar face contact AD tapered shank.

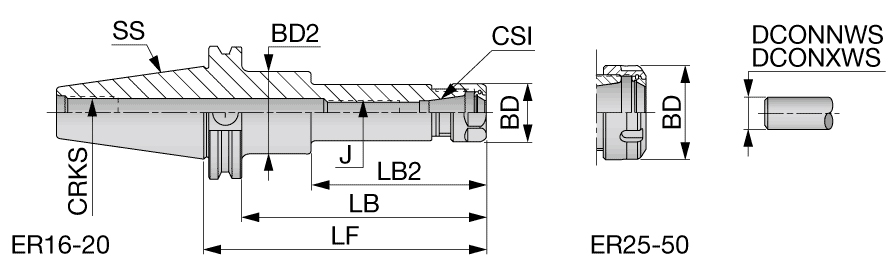

| Shank Size (SS) | CAT50-FC | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER40 | Tool Type | Caterpillar |
| Body Diameter (BD) | 2.48″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Length (LB) | 3-1/4″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Body Length_2 (LB_2) | 2.7″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
| Functional Length (LF) | 4″ | Unit | I |
Product Features
| Family Description | ER collet chuck holder with Caterpillar face contact AD tapered shank. | FamilyName | CAT-FC-ER |
| Remarks | Applicable for 10 MPa coolant. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
CAT-FC-ER
BrandName
Tungaloy
