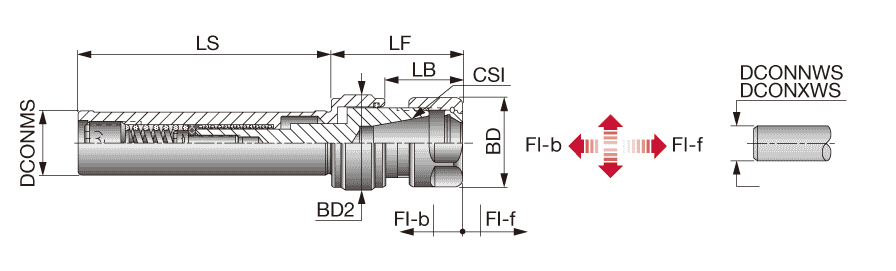

| Shank Size (SS) | 25. | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 42 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Body Length (LB) | 32 mm | Tap Max | M16 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Tap Min | M5 |
| Shank Length (LS) | 80 mm | Measurement Type | Metric |
| Functional Length (LF) | 53 mm | Body Material | Steel |
| Application | | Straight shape | | Unit | M |
Product Features

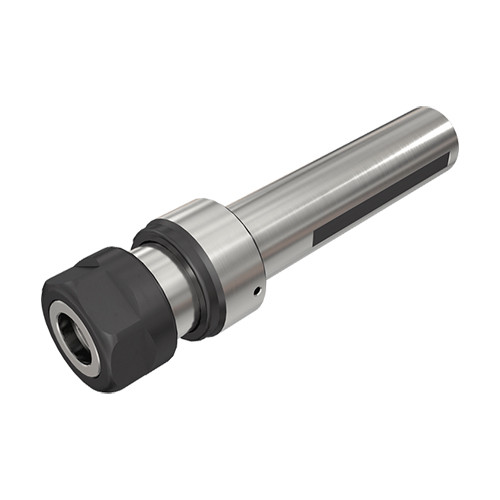

| Family Description | TungGTI tapping attachment with Straight shank | FamilyName | GTI-ER-ST tapping attachment |
| Remarks | Wrench is not included. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.5870
Name
Collet Chucks
FamilyName
GTI-ER-ST tapping attachment
BrandName
Tungaloy
Related Documentation
[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
