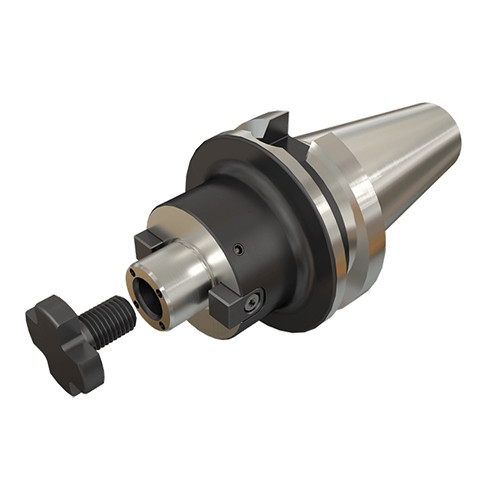

BT40SEM22X100C
Shell mill holder with coolant hole with BT shank (Extra long type )
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | BT40 | Tool Type | BT |
| Body Length (LB) | 73 mm | Measurement Type | Metric |
| Body Diameter (BD) | 47 mm | Body Material | Steel |
| Overall Length (OAL) | 100 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M16 |
Product Features
| Family Description | Shell mill holder with coolant hole with BT shank (Extra long type ) | FamilyName | BT-SEM-C (for Shell mill) |
| Remarks | Applicable for 10 MPa coolant. When being used as a flange through type, the plug screw must be removed from the flange with a 2 mm hex key. Wrench is not included. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
2.0600
Name
Shell Mill Holders
FamilyName
BT-SEM-C (for Shell mill)
BrandName
Tungaloy
