TJSGJETC6
Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding.

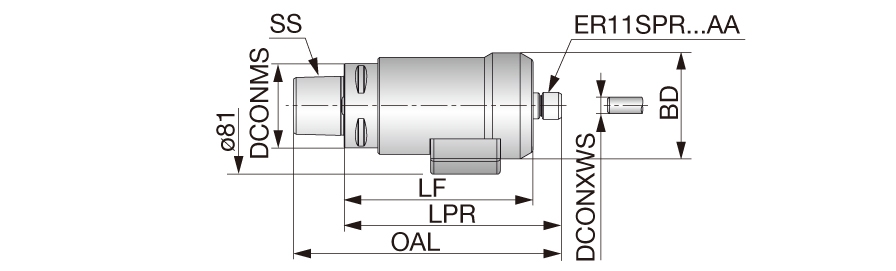

| Shank Size (SS) | C6 | Measurement Type | Metric |
| Functional Length (LF) | 102 mm | Collet Size | ER11 |
| Protruding Length (LPR) | 119 mm | Application | | Face contact interface | |
| Overall Length (OAL) | 157 mm | Body Material | Steel |
| Body Diameter (BD) | 63 mm | Unit | M |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | FamilyName | TJS-GJET-C |
| Remarks | Coolant pressure through machine spindle: Min. 2 MPa / Max. 4 MPa Min. flow rate: 12 l/min Max. tool shank diameter: 7.0 mm RPM range: 35,000 55,000 RPM (These are approximate RPM values depending on coolant pressure, flow rate, and type.) | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
HSM Spindles
FamilyName
TJS-GJET-C
BrandName
Tungaloy
