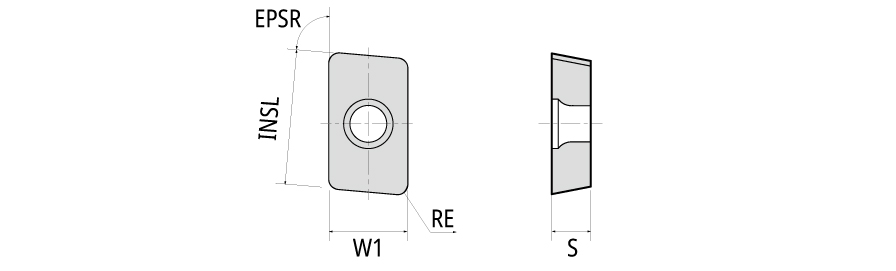

| Application | | Inserts for milling | | Clearance Angle Major (AN) | 11 Degrees |
| Insert Length (INSL) | 16.46 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1.2 mm | Cutting Edge Material | Ceramic |
| Insert Width (W1) | 9.53 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Unit | M |
| Grade | SX9 |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | APCW / JQ SERIES INSERT |
Shipping Info
Weight per item
0.0024
Name

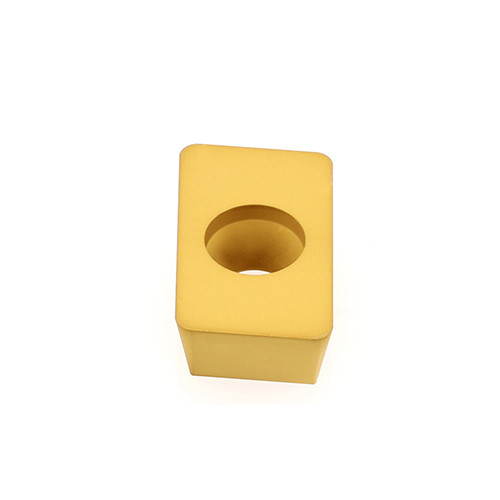

Milling Indexable Inserts
FamilyName
APCW / JQ SERIES INSERT
BrandName
NTK
