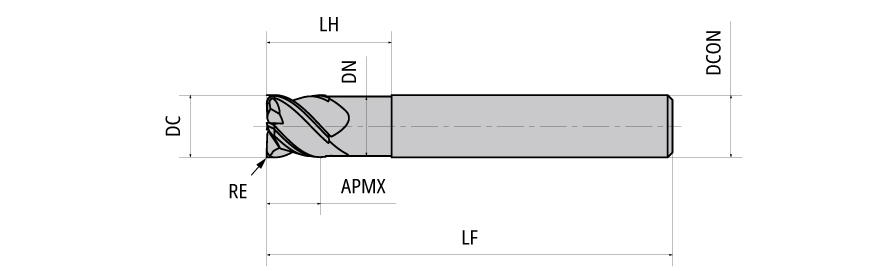

| Cutting Diameter (DC) | 8 mm | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Grade | SX9 |
| Depth of Cut Maximum (APMX) | 6 mm | Neck Diameter (DN) | 7.6 mm |
| Cutting Edge Material | Ceramic | Head Length (LH) | 16 mm |
| Flute Count (NOF) | 4 | Peripheral Effective Cutting Edge Count (ZEFP) | 4 mm |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Application | | For HRSA material | | Unit | M |
| Corner Radius (RE) | 1 mm |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |

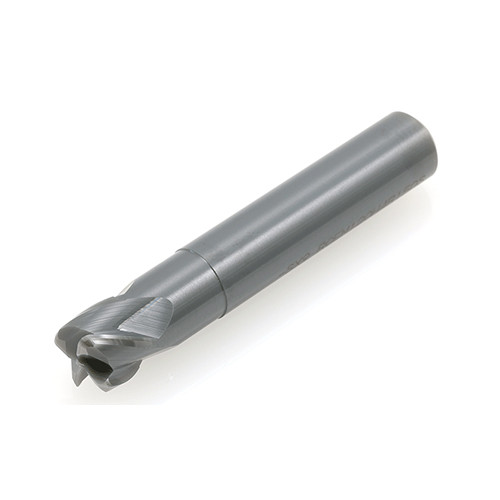

| FamilyName | RCE-H4 CERAMATIC ENDMILL FOR HRSA MATERIAL |
Shipping Info
Weight per item
0.0101
Name
Square & Corner Radius End Mills
FamilyName
RCE-H4 CERAMATIC ENDMILL FOR HRSA MATERIAL
BrandName
NTK Cutting Tools
