E10M-SCLXL06-D120
Screw-on boring bar for 80 deg rhombic insert with 4 edges

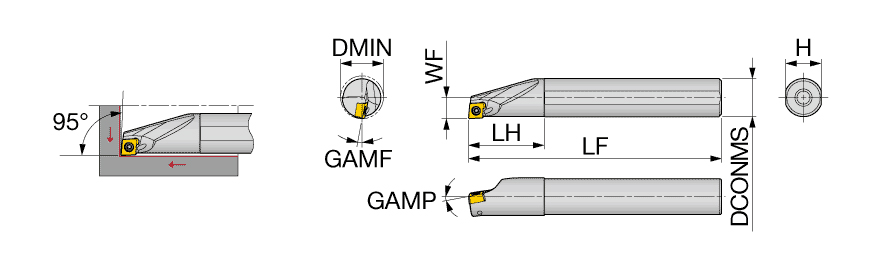

| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 150 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Head Length (LH) | 25 mm | Rake Angle Radial (GAMF) | -14.5 Degrees |
| Shank Height (H) | 9 mm | Body Material | Carbide |
| Functional Width (WF) | 6 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CXMU060304R | Unit | M |
| Minimum Bore Diameter (DMIN) | 12 mm |
Product Features
| Family Description | Screw-on boring bar for 80 deg rhombic insert with 4 edges | FamilyName | A/E-SCLXR/L |
| Remarks | Use right hand toolholders (R) with left hand inserts (L); and left hand toolholders (L) with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable Internal Turning Tools
FamilyName
A/E-SCLXR/L
BrandName
Tungaloy
