E10-SCLPR3-D14

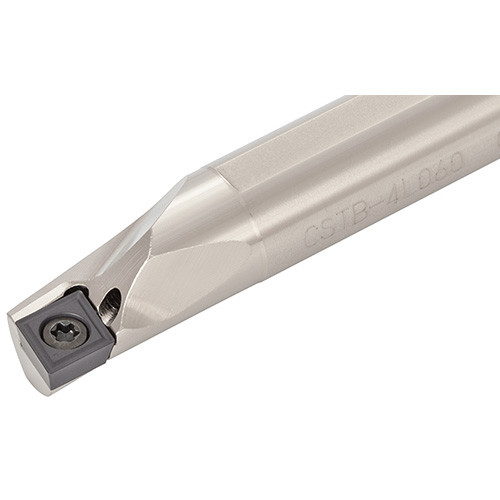

Screw-on boring bar, for posi 80 deg rhombic insert with 11 deg clearance

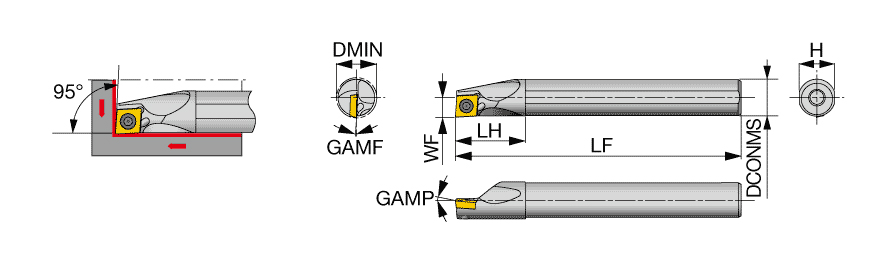

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 7″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 1-1/4″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Shank Height (H) | 0.6″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.531″ | Body Material | Carbide |
| Master Insert Identification (MIID) | CPMT32.52 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 7/8″ | Unit | I |
Product Features
| Family Description | Screw-on boring bar, for posi 80 deg rhombic insert with 11 deg clearance | FamilyName | A/E-SCLPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLPL** type), and the left hand insert (L) is used for the right hand toolholders (SCLPR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.0560
Name
Indexable Internal Turning Tools
FamilyName
A/E-SCLPR/L
BrandName
Tungaloy
