A08-SYQBR2-D12

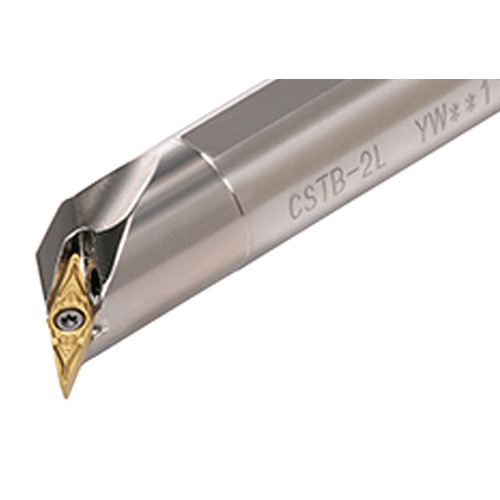

Screw-on boring bar, for positive 25 deg rhombic insert with 5 deg clearance

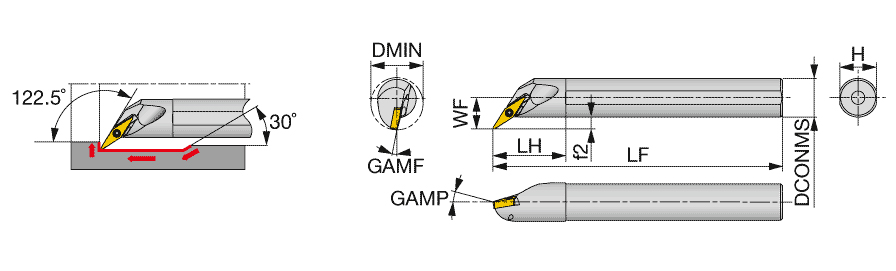

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | For 25deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Head Length (LH) | 1″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 0.475″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.438″ | Body Material | Steel |
| Master Insert Identification (MIID) | YWMT11T204 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 3/4″ | Unit | I |
Product Features
| Family Description | Screw-on boring bar, for positive 25 deg rhombic insert with 5 deg clearance | FamilyName | A/E-SYQBR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2932
Name
Indexable Internal Turning Tools
FamilyName
A/E-SYQBR/L
BrandName
Tungaloy
