E12-SCLCL3

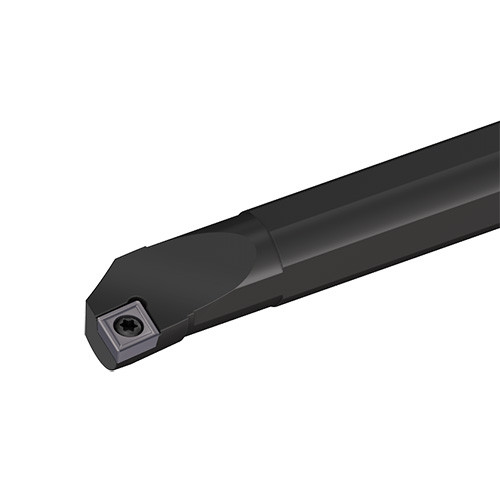

Screw-on boring bar for Posi 80 deg rhombic insert with 7 deg clearance

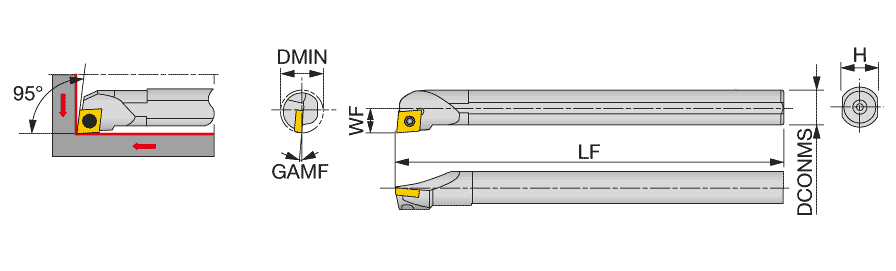

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Width (WF) | 0.495″ |
| Minimum Bore Diameter (DMIN) | 0.92″ | Body Material | Carbide |
| Functional Length (LF) | 7″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
| Application | | For 80deg Rhombic insert | |
Product Features
| Family Description | Screw-on boring bar for Posi 80 deg rhombic insert with 7 deg clearance | FamilyName | A/E-SCLCR/L Non-Stream Jet |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). These products are for the North American Region only. | BrandName | Tungaloy |
| COO | USA |
Shipping Info
Weight per item
0.0000
Name
Solid Boring Bars
FamilyName
A/E-SCLCR/L Non-Stream Jet
BrandName
Tungaloy
