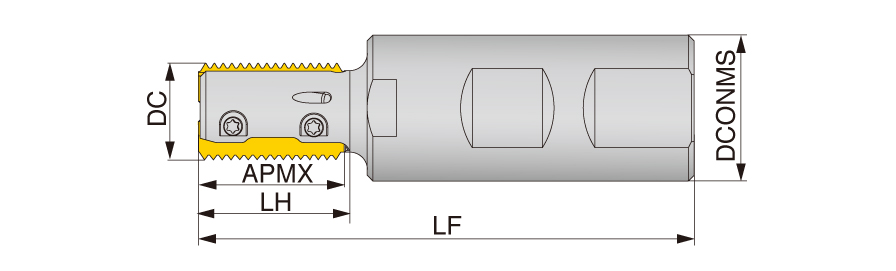

| Cutting Diameter (DC) | 22 mm | Application | | Ext. Thread Milling | Int. Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 25 mm | Cutting Item Count (CICT) | 3 |
| Overall Length (OAL) | 102 mm | Head Length (LH) | 43 mm |
| Master Insert Identification (MIID) | TL25DIR1.5ISO | Unit | M |
| Body Material | Steel |
Product Features

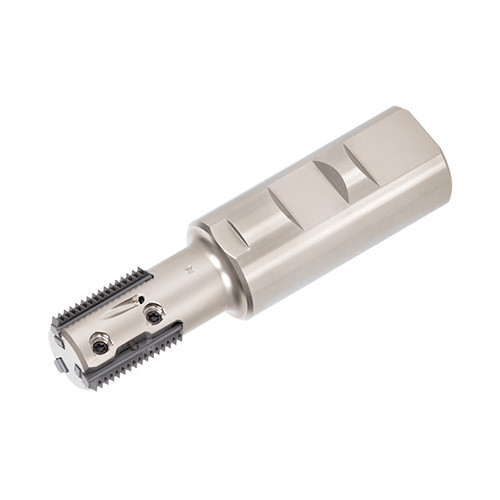

| Family Description | Indexable thread milling cutters, long edge | COO | JAPAN |
