CAER-6T20
Modular-type external grooving, turning and parting adapter

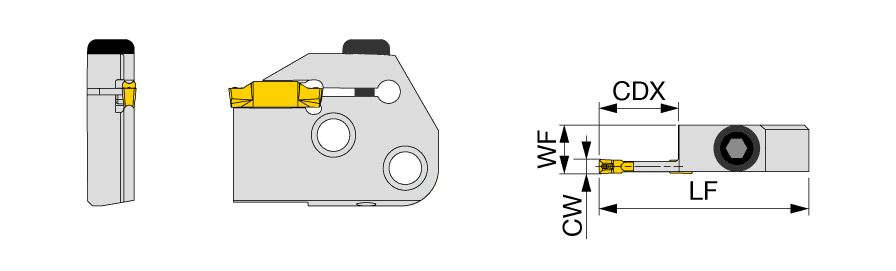

| Functional Width (WF) | 10.5 mm | Body Material | Steel |
| Functional Length (LF) | 49 mm | Tool Type | Turn-Groove Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | External grooving | | Unit | M |
Product Features
| Family Description | Modular-type external grooving, turning and parting adapter | FamilyName | CAER/L |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. See applicable inserts table. Torque: Recommended torque (Nm) for clamping Not compatible with TungModularSystem | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.1100
Name
Groove/Turn Indexable Holders
FamilyName
CAER/L
BrandName
Tungaloy
