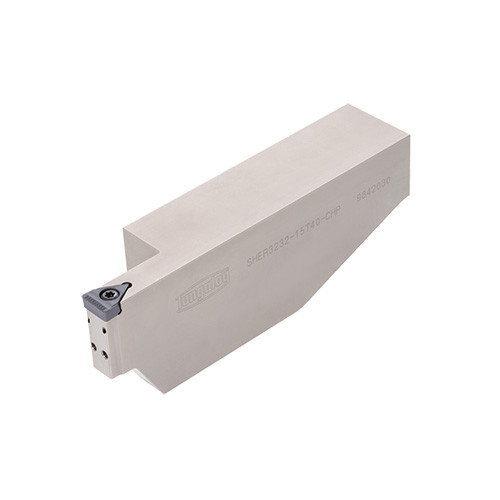

SHER3232-25T40-CHP
External grooving and profiling toolholder with high pressure coolant capability

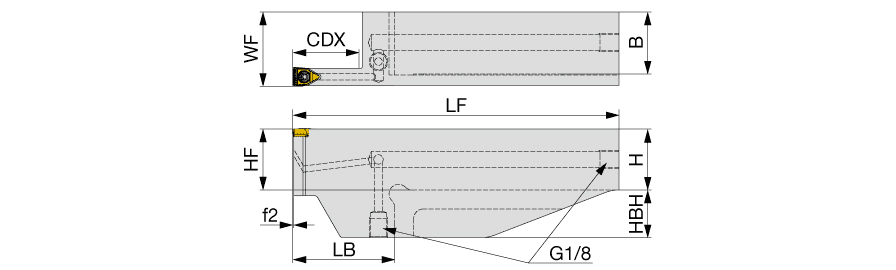

| Shank Height (H) | 32 mm | Application | | External grooving | |
| Shank Width (B) | 32.5 mm | Body Material | Steel |
| Functional Width (WF) | 39 mm | Tool Type | Parting & Grooving Tools |
| Functional Length (LF) | 170 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | External grooving and profiling toolholder with high pressure coolant capability | FamilyName | SHER-CHP |
| Remarks | The values for CDX, LB, LF and f2 are true when HGM insert is assembled. Note that these values differs when HBL insert is assembled. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
SHER-CHP
BrandName
Tungaloy
