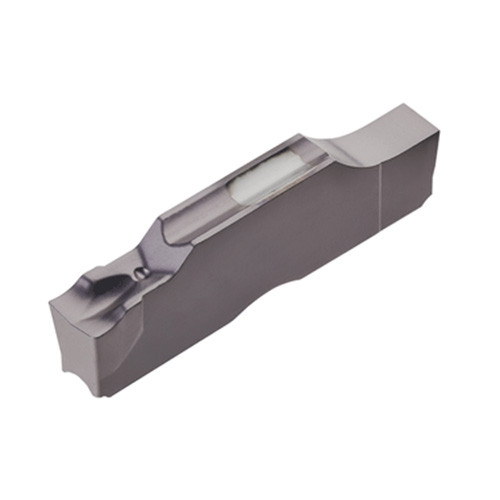

SGS2-020-15L GH130
Single-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.05mm

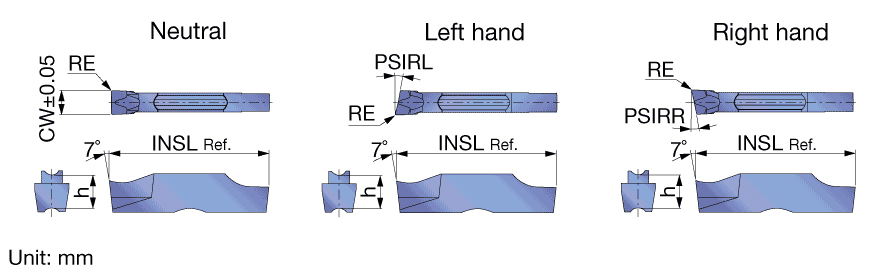

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 15 Degrees |
| Insert Length (INSL) | 20 mm | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCNO | Body Material | Carbide |
| Grade | GH130 | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Single-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.05mm | FamilyName | SGS |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0330
Name
Parting Off Indexable Inserts
FamilyName
SGS
BrandName
Tungaloy
Related Documentation

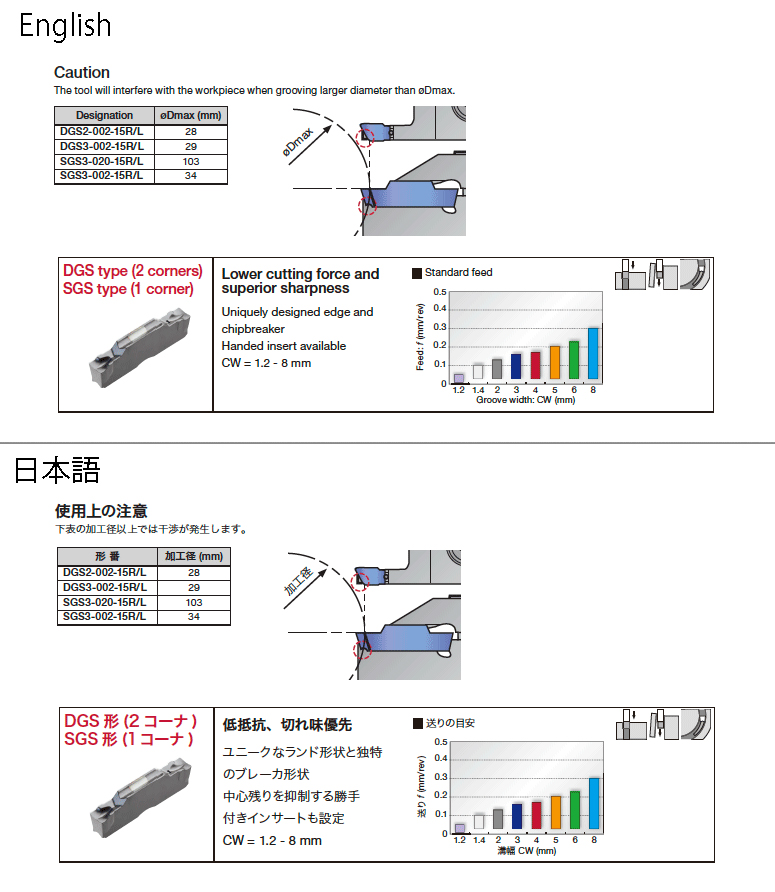

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
