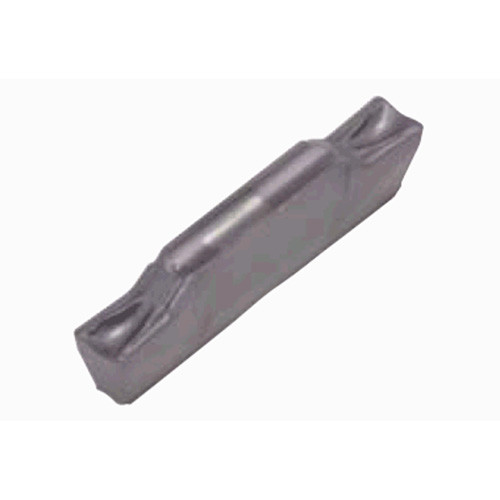

DTX2-020 KS05F
Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.05mm
| Cutting Width (CW) | 2 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 18.5 mm | Number of Cutting Edges | 2 |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | KS05F | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
Product Features
| Family Description | Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.05mm | FamilyName | DTX |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
DTX
BrandName
Tungaloy
