| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.7 mm/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

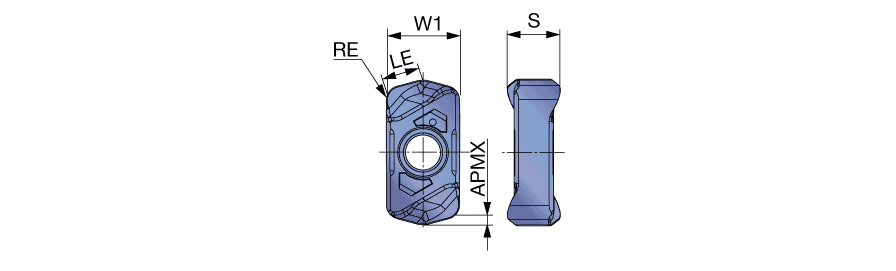

| Corner Radius (RE) | 1.2 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 6 mm | Cutting Edge Effective Length (LE) | 3.2 mm |
| Insert Thickness (S) | 4.29 mm | Measurement Type | Metric |
| Coating | TiAlSiCrN | Body Material | Carbide |
| Grade | AH3225 | Unit | M |
Product Features
| Family Description | Double sided insert with 4 edges and ML chipbreaker | FamilyName | LNMU03ZER-ML |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
LNMU03ZER-ML
BrandName
Tungaloy
