HFZN10M020M10R04

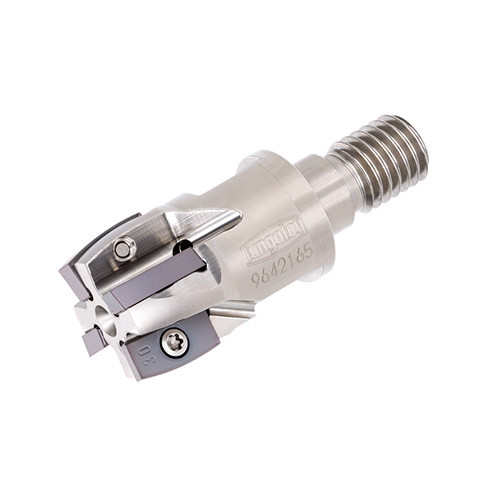

Profiling endmill, modular type (TungFlex), for 2-corner double sided inserts

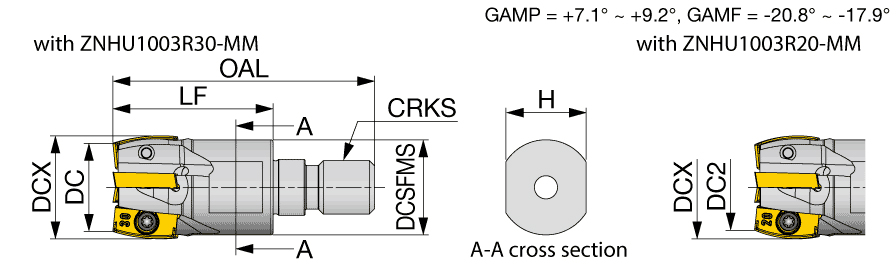

| Cutting Diameter (DC/DCX) | 17 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 17 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Connection Retention Knob Thread Size (CRKS) | M10 |
| Overall Length (OAL) | 49 mm | Shank Height (H) | 15 mm |
| Application | | Profile Milling | | Cutting Diameter Maximum (DCX) | 20 mm |
| Master Insert Identification (MIID) | ZNHU1003R30-MM | Unit | M |
| Functional Length (LF) | 30 mm |
Product Features
| Family Description | Profiling endmill, modular type (TungFlex), for 2-corner double sided inserts | FamilyName | HFZN10-M |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
HFZN10-M
BrandName
Tungaloy
