TAOW05J100B31.7R06

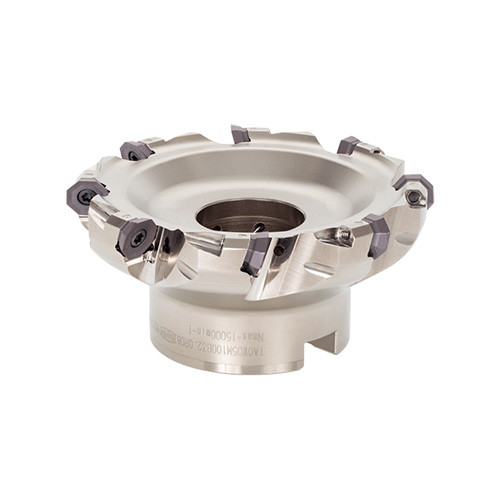

41 deg screw clamp type face milling cutter with single-sided octagonal inserts

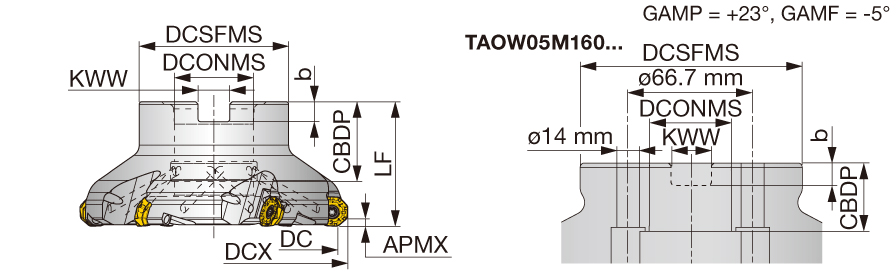

| Cutting Diameter (DC/DCX) | 107.6 mm | Body Material | Steel |
| Cutting Diameter (DC) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 107.6 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Type | 75 Facemills |
| Overall Length (OAL) | 50 mm | Unit | M |
| Master Insert Identification (MIID) | OWMT05T3AFER-MM |
Product Features
| Family Description | 41 deg screw clamp type face milling cutter with single-sided octagonal inserts | FamilyName | TAOW05 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TAOW05
BrandName
Tungaloy
