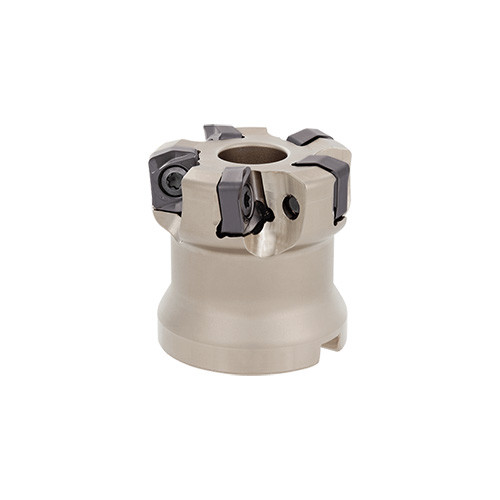

TXN06R080M31.7-08
Super high feed milling cutters with double sided inserts with 4 edges
| Cutting Diameter (DC/DCX) | 80 mm | Body Material | Steel |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 80 mm | Application | | High Feed Milling | |
| Cutting Item Count (CICT) | 8 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 1.5 mm | Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Type | Fast Feed Endmill |
| Overall Length (OAL) | 63 mm | Unit | M |
| Master Insert Identification (MIID) | LNMU06X5ZER-MJ |
Product Features
| Family Description | Super high feed milling cutters with double sided inserts with 4 edges | FamilyName | TXN06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.8400
Name
Indexable Face Mills
FamilyName
TXN06
BrandName
Tungaloy
Related Documentation
The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DC above 100 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
