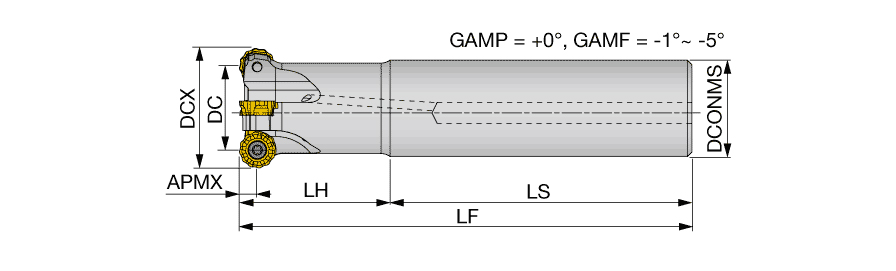

Cutting Diameter (DC/DCX) | 28 mm | Head Length (LH) | 50 mm |
Cutting Diameter (DC) | 28 mm | Functional Length (LF) | 250 mm |
Cutting Item Count (CICT) | 4 | Tool Type | Corner rounding endmills |
Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
Overall Length (OAL) | 250 mm | Body Material | Steel |
Shank Type | Round | Shank Length (LS) | 200 mm |
Application | | Profile Milling | | Cutting Diameter Maximum (DCX) | 40 mm |
Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
Master Insert Identification (MIID) | RCMT1204EN-NMJ |


Product Features
Family Description | Indexable endmills with button insert of 8mm or 6mm radius | FamilyName | ERC12/16 |
COO | GERMANY | BrandName | Tungaloy |
Shipping Info
Weight per item
1.5700
Name
Indexable End Mills
FamilyName
ERC12/16
BrandName
Tungaloy
