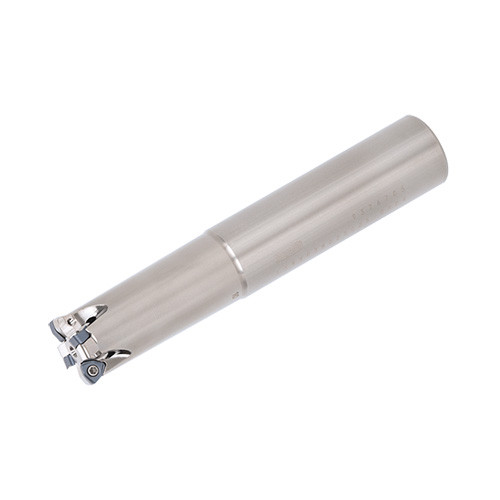

EXWX03M016C16.0R02L
High feed milling endmill, shank type, with 6-corner double sided inserts

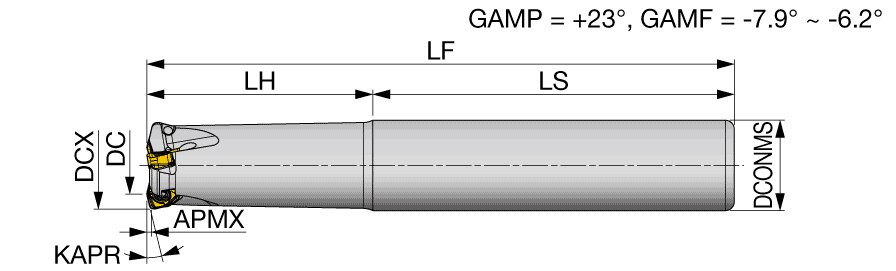

| Cutting Diameter (DC/DCX) | 8.9 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 8.9 mm | Functional Length (LF) | 150 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 1 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Cutting Diameter Maximum (DCX) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Unit | M |
| Master Insert Identification (MIID) | WXMU0303ZER-MM |
Product Features
| Family Description | High feed milling endmill, shank type, with 6-corner double sided inserts | FamilyName | EXWX03 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EXWX03
BrandName
Tungaloy
