HVLX12M026M12R02

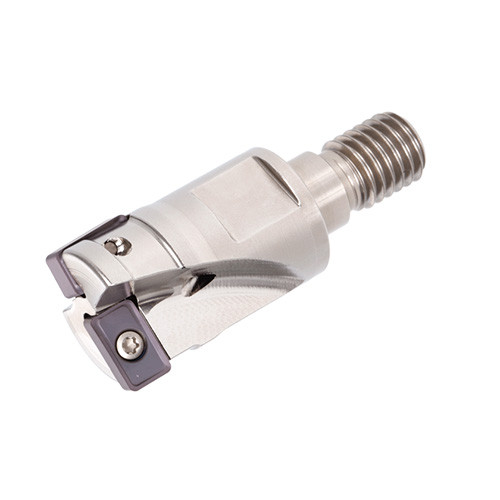

Multi-function endmill, modular type (TungFlex), with center cutting edge

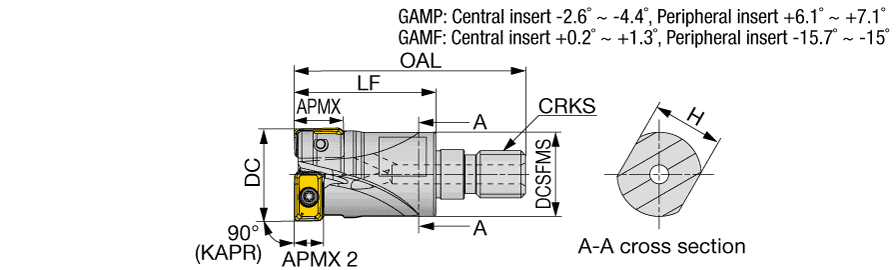

| Cutting Diameter (DC/DCX) | 26 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 26 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 2 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 11 mm | Connection Retention Knob Thread Size (CRKS) | M12 |
| Overall Length (OAL) | 57 mm | Shank Height (H) | 17 mm |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 26 mm |
| Master Insert Identification (MIID) | LXMU120408PER-MM | Unit | M |
| Functional Length (LF) | 35 mm |
Product Features
| Family Description | Multi-function endmill, modular type (TungFlex), with center cutting edge | FamilyName | HVLX-M |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
HVLX-M
BrandName
Tungaloy
