C4PWLNR27050-08-CHP

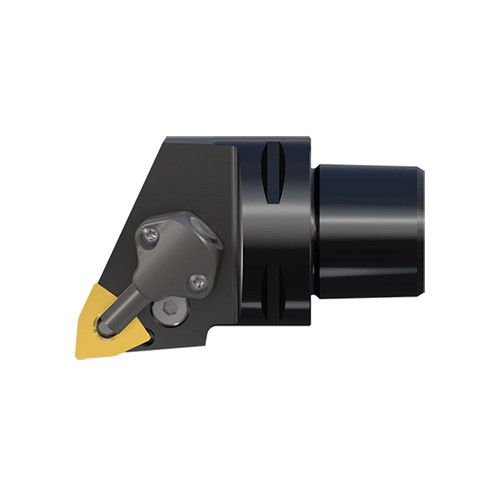

Lever lock type toolholder with 95 deg approach angle, with channels for high pressure coolant

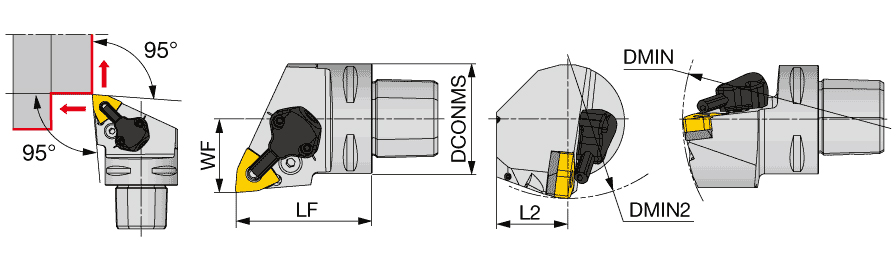

| Overall Length (OAL) | 74 mm | Master Insert Identification (MIID) | WNMG080408 |
| Functional Length (LF) | 50 mm | Application | | Face contact interface | For 80deg Trigon insert | |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 140 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, with channels for high pressure coolant | FamilyName | C-PWLNR/L-CHP |
| Remarks | Applicable for 14 MPa coolant | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.5430
Name
General Indexable Turning Tools
FamilyName
C-PWLNR/L-CHP
BrandName
Tungaloy
