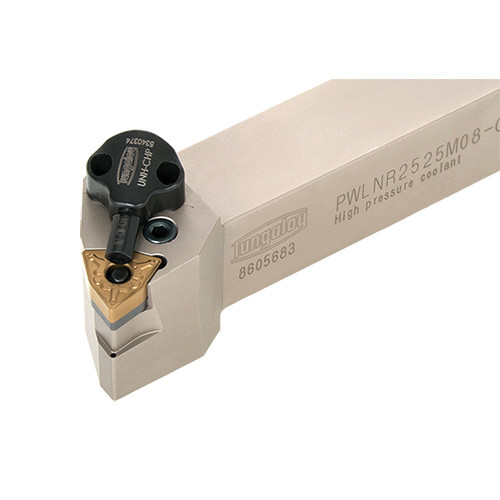

PWLNR2525M08-CHP
Lever lock type toolholder with 95 deg approach angle, for negative 80 deg trigon inserts, with channels for high pressure coolant

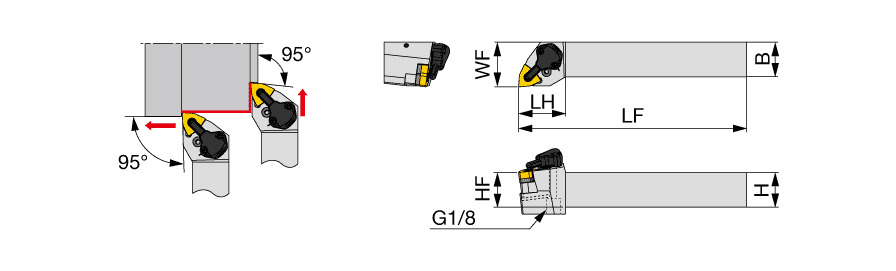

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | WNMG080408 |
| Overall Length (OAL) | 150 mm | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 34 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg trigon inserts, with channels for high pressure coolant | FamilyName | PWLNR/L-CHP |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.8350
Name
General Indexable Turning Tools
FamilyName
PWLNR/L-CHP
BrandName
Tungaloy
