AVJNR122.33-A

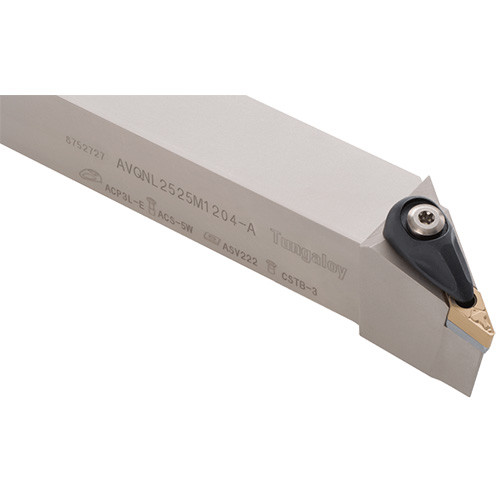

Double-clamp toolholders with 93deg approach angle for negative 35deg rhombic inserts VN**2.33...

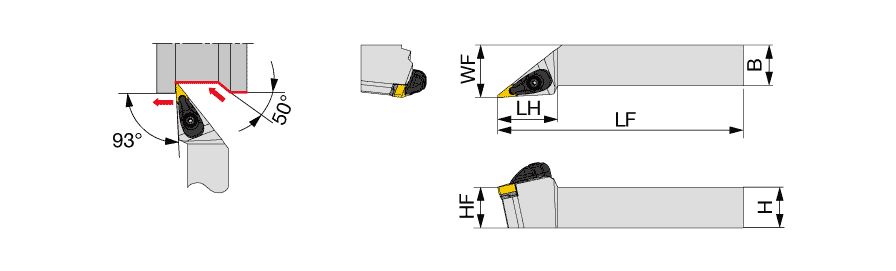

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | VNMG2.332E |
| Shank Width (B) | 3/4″ | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Functional Length (LF) | 4-1/2″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 1-1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 1″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Double-clamp toolholders with 93deg approach angle for negative 35deg rhombic inserts VN**2.33... | FamilyName | AVJNR/L-Eco |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7716
Name
General Indexable Turning Tools
FamilyName
AVJNR/L-Eco
BrandName
Tungaloy
