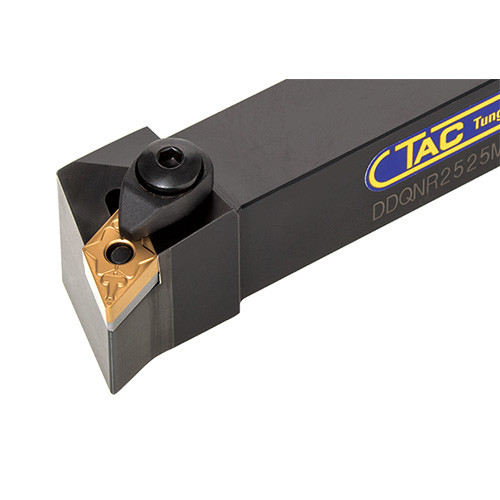

DDQNL2020K15
One-Double toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts

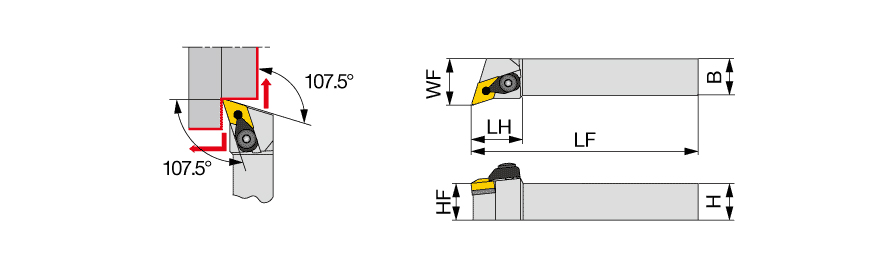

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | DNMG150408 |
| Shank Width (B) | 20 mm | Application | | For 55deg Rhombic insert | |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 35 mm | Measurement Type | Metric |
| Functional Width (WF) | 25 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | One-Double toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts | FamilyName | DDQNR/L |
| Remarks | Except for 57 type chipbreaker inserts | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.4380
Name
General Indexable Turning Tools
FamilyName
DDQNR/L
BrandName
Tungaloy
