QR12D-SDLCL11-CHP

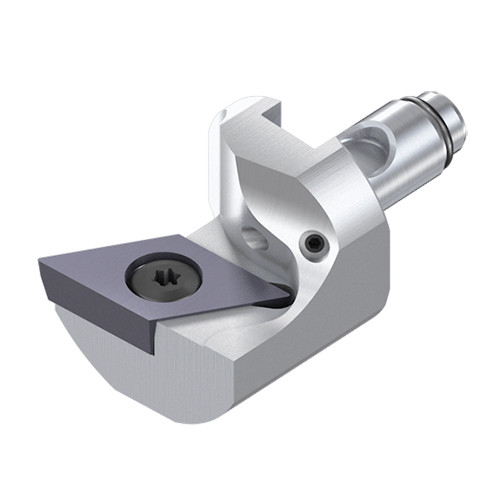

Modular head for ISO 55 deg rhombic inserts, with high pressure coolant capability, for round shanks

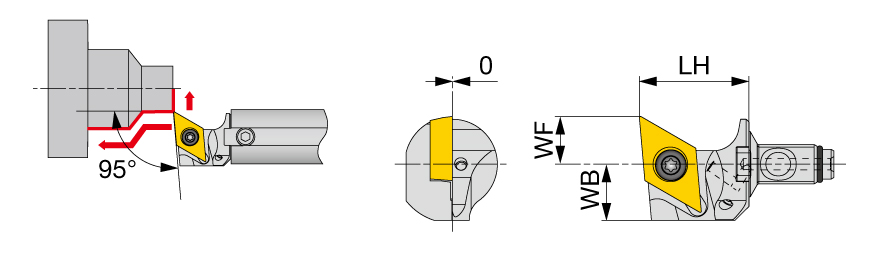

| Overall Length (OAL) | 34.6 mm | Master Insert Identification (MIID) | DCGT11T302 |
| Functional Length (LF) | 19.9 mm | Application | | For Miniature machining | |
| Head Length (LH) | 19.5 mm | Body Material | Steel |
| Functional Width (WF) | 10.5 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | Modular head for ISO 55 deg rhombic inserts, with high pressure coolant capability, for round shanks | FamilyName | QR12-SDLCL-CHP |
| Remarks | When using a right hand or left hand insert, use left hand toolholders (L) with right hand inserts (R). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
QR12-SDLCL-CHP
BrandName
Tungaloy
