A16F-QR12
Round shank for modular heads, with high pressure coolant capability

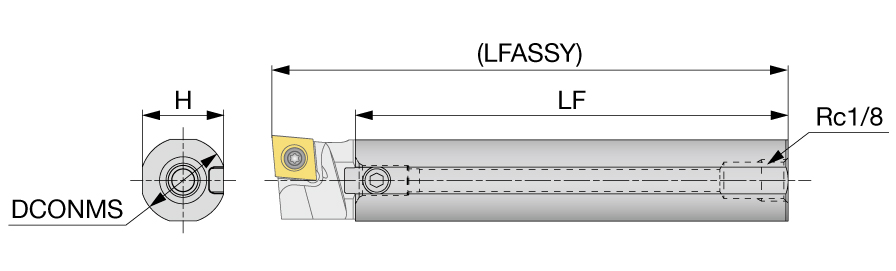

| Shank Height (H) | 15 mm | Application | | External grooving | For Miniature machining | Parting off | |
| Overall Length (OAL) | 67.5 mm | Body Material | Steel |
| Functional Length (LF) | 65 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Unit | M |
Product Features
| Family Description | Round shank for modular heads, with high pressure coolant capability | FamilyName | A-QR12 |
| Remarks | When the screw cannot be accessed with a P 3 key due to little space between the adjacent tool, use P 3B key (sold separately) with the ball head instead. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
A-QR12
BrandName
Tungaloy
