TECH080B6-20C08-63 AH750

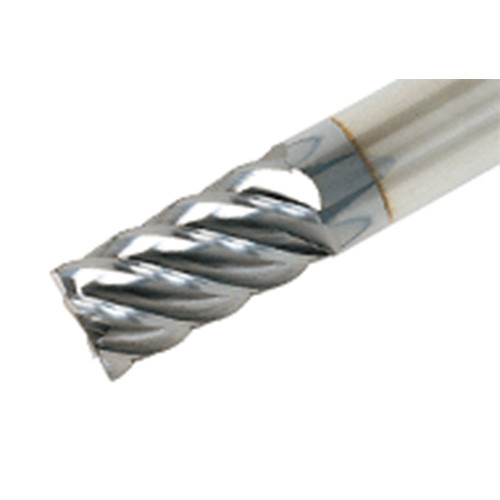

6 flute endmill, 45 deg helix angle, for finishing operation. AH750 grade is applicable to the hardened steel up to 65 HRC

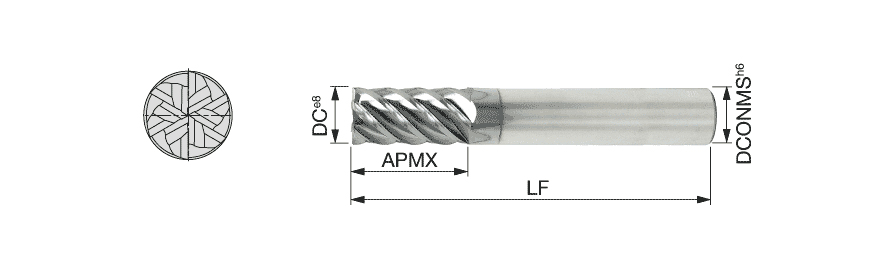

| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 20 mm | Grade | AH750 |
| Overall Length (OAL) | 63 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Unit | M |
Product Features
| Family Description | 6 flute endmill, 45 deg helix angle, for finishing operation. AH750 grade is applicable to the hardened steel up to 65 HRC | FamilyName | TECH-B6 |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0440
Name
Square & Corner Radius End Mills
FamilyName
TECH-B6
BrandName
Tungaloy
