TECA120H4-24/36C12CF-R02 KS15F
4 flute endmill, variable helix and variable pitch, relieved neck type, for aluminium machining (1.5xD, 2xD)

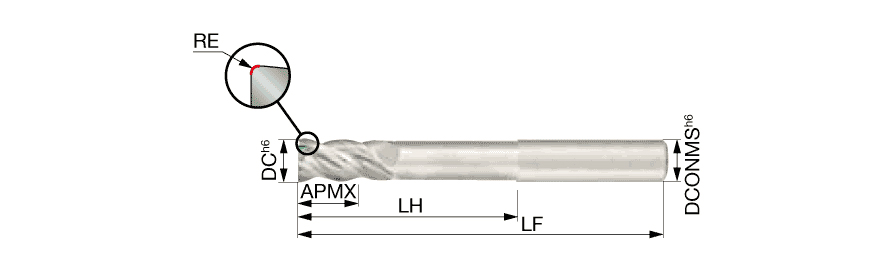

| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.2 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Grade | KS15F |
| Depth of Cut Maximum (APMX) | 24 mm | Head Length (LH) | 36 mm |
| Overall Length (OAL) | 83 mm | Neck Length (LN) | 36 mm |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Application | | Shoulder Milling | |
Product Features
| Family Description | 4 flute endmill, variable helix and variable pitch, relieved neck type, for aluminium machining (1.5xD, 2xD) | FamilyName | TECA-H4-CF-R |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1180
Name
Square & Corner Radius End Mills
FamilyName
TECA-H4-CF-R
BrandName
Tungaloy
