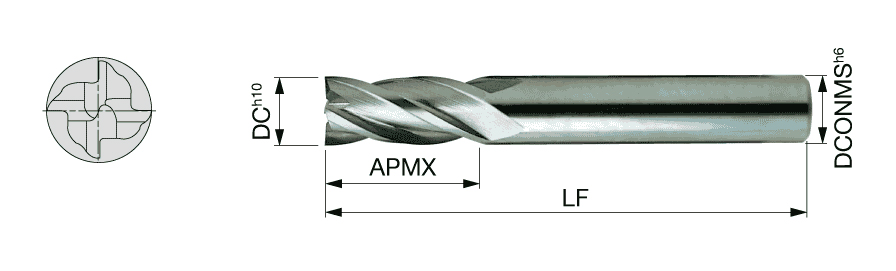

| Cutting Diameter (DC) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 2 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Grade | AH725 |
| Overall Length (OAL) | 32 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.005 mm/tooth |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Unit | M |
Product Features
| Family Description | 4 flute endmill, 30 deg helix angle | FamilyName | TEC-A4 (economical) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0150
Name
Square & Corner Radius End Mills
FamilyName
TEC-A4 (economical)
BrandName
Tungaloy
