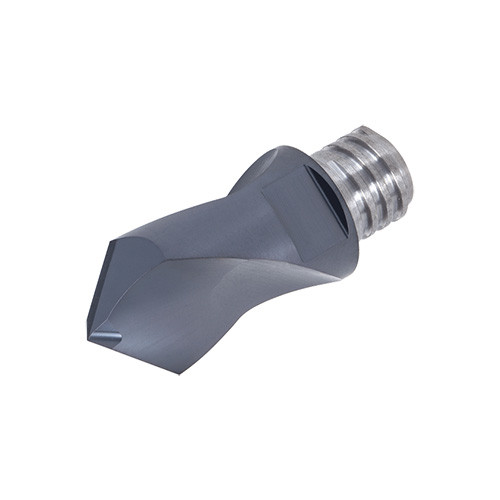

VDS160A45-02S10 AH725
Chamfering & Spot drill, 2 flutes, chamfering angle: 45 degree, helix cutting edge
| Cutting Diameter (DC) | 16 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 39.75 mm |
| Application | | Multi Functional tools | | Cutting Diameter Maximum (DCX) | 16 mm |
| Grade | AH725 | Coating | TiAlN |
| Tool Type | Solid chamfering endmills | Body Material | Carbide |
| Protruding Length (LPR) | 28 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Chamfering & Spot drill, 2 flutes, chamfering angle: 45 degree, helix cutting edge | COO | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Weight per item
0.0000
