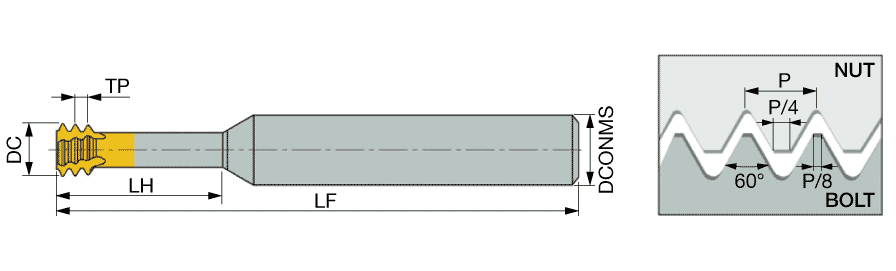

| Connection Diameter Machine Side (DCONMS) | 6 mm | Threads per Inch Maximum (TPIX) | 80 |
| Cutting Diameter (DC) | 1.15 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | AH750 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 80 |
Product Features

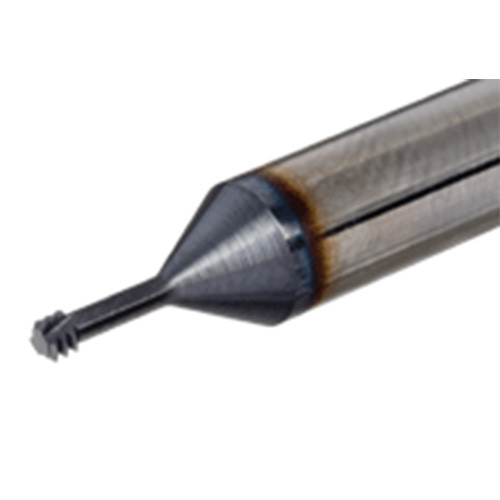

| Family Description | Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | COO | ISRAEL |
