MTECI0808D30A60 AH725

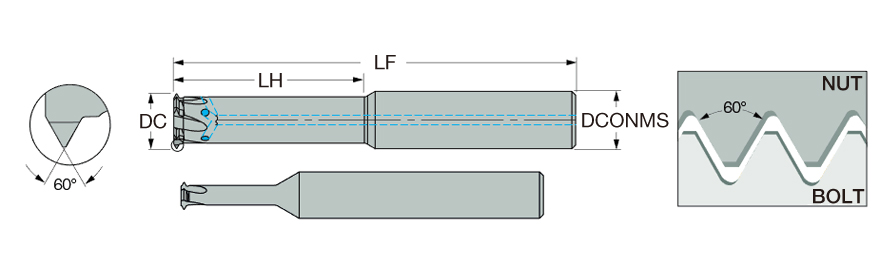

60 deg partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required.
| Thread Size | =>M10 | Threads per Inch Minimum (TPIN) | 16 |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Threads per Inch Maximum (TPIX) | 32 |
| Cutting Diameter (DC) | 8 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 64 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | 60 deg partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required. | COO | ISRAEL |
| Remarks | For (a) and detailed cutting recommendations, click on "More Info". |
Shipping Info
Weight per item
0.0000
