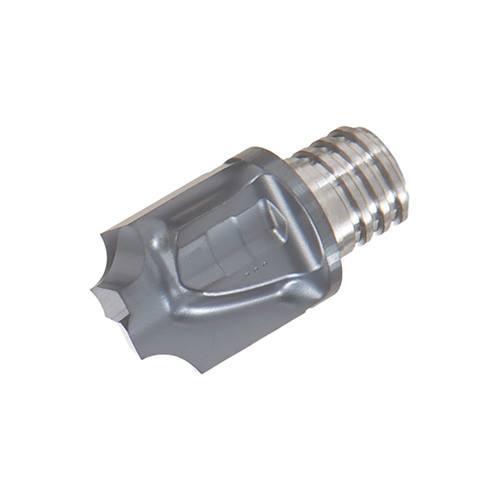

VCR100L09.5R16-02S06 AH725
Chamfering, 2 flutes, radius chamfering

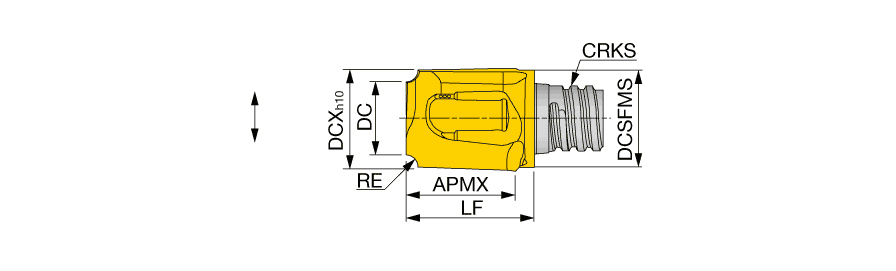

| Application | | Multi Functional tools | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 6.8 mm | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 1.6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 10 mm | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 9.5 mm | Body Material | Carbide |
| Functional Length (LF) | 12.5 mm | Unit | M |
Product Features
| Family Description | Chamfering, 2 flutes, radius chamfering | FamilyName | VCR-02 |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0320
Name
Solid End Mill Heads
FamilyName
VCR-02
BrandName
Tungaloy
