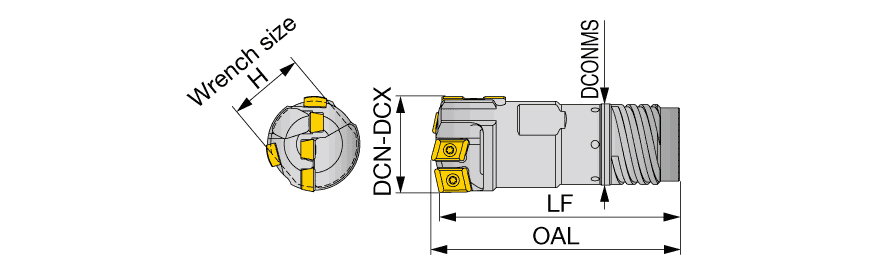

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 60.99 mm |
| Connection Diameter Machine Side (DCONMS) | 51 mm | Measurement Type | Metric |
| Functional Length (LF) | 115 mm | Body Material | Steel |
| Overall Length (OAL) | 120 mm | Unit | M |
| Cutting Diameter Minimum (DCN) | 56.21 mm |
Product Features

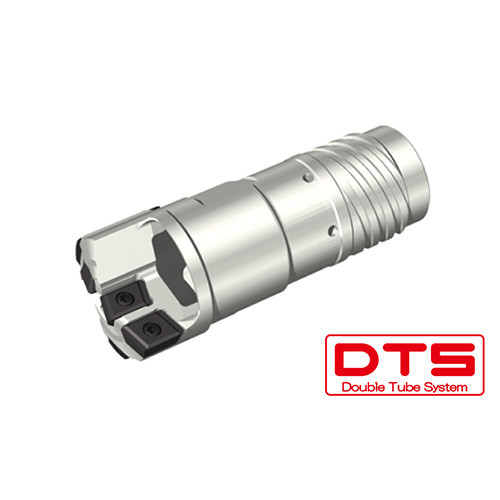

| Family Description | Double Tube Drills with Outer 4 Start Thread connection and direct mount inserts, dia=25 - 65mm. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. For inserts and spare parts, click on "More Info". |
Shipping Info
Weight per item
0.0000
