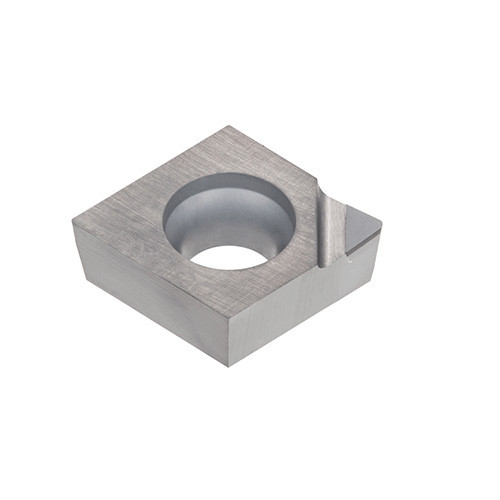

1QP-CCMT060204 DX110
Positive 7 deg relief angle, M class, 80 deg rhombic PCD insert
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1 mm |

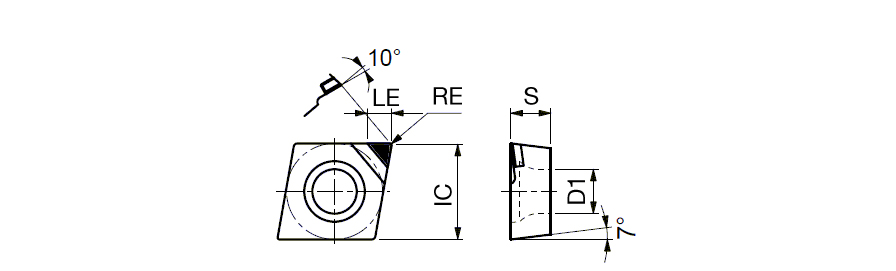

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 6.5 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | BR-DIA |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | DX110 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 2.4 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features
| Family Description | Positive 7 deg relief angle, M class, 80 deg rhombic PCD insert | FamilyName | CCMT-DIA |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CCMT-DIA
BrandName
Tungaloy
