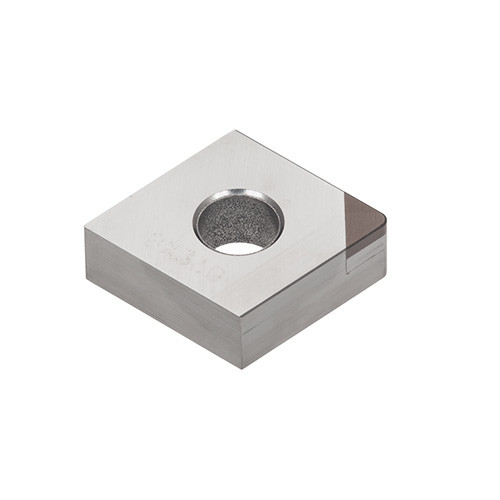

CNGA120404-QBN BX360
Negative relief ang., G class, 80deg rhombic CBN insert
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1 mm |

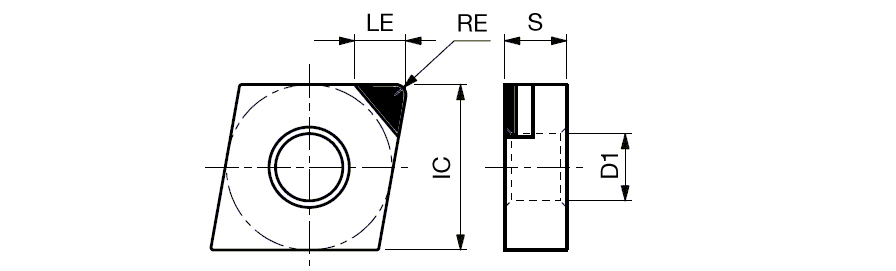

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX360 | Cutting Edge Effective Length (LE) | 4 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, 80deg rhombic CBN insert | FamilyName | CNGA-QBN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0200
Name
Turning Indexable Inserts
FamilyName
CNGA-QBN
BrandName
Tungaloy
